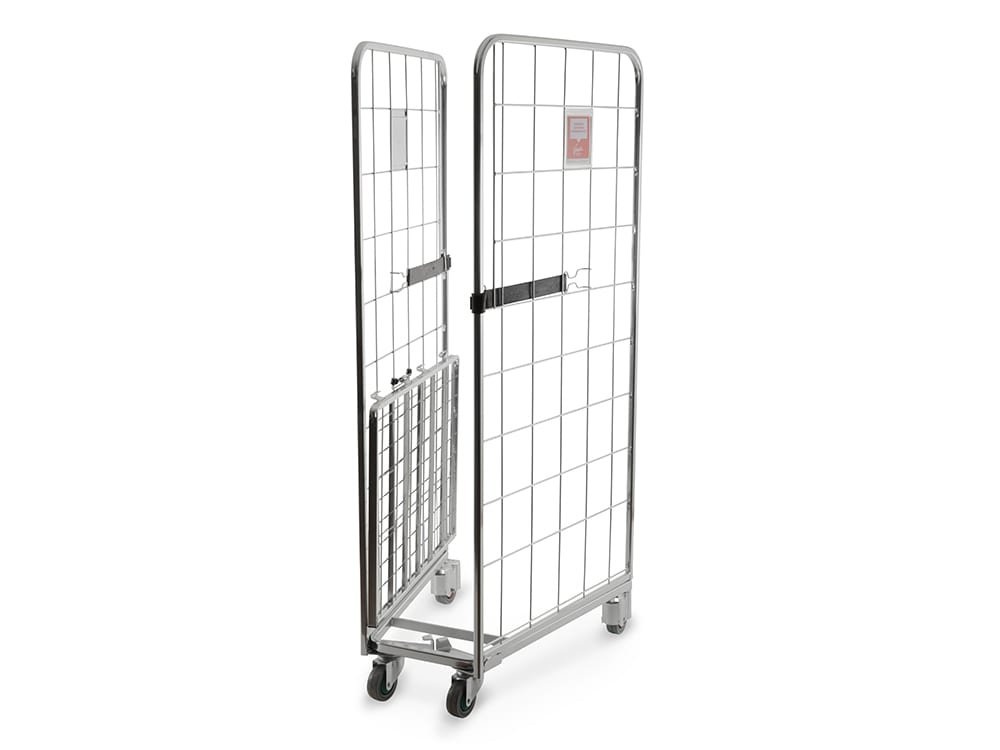

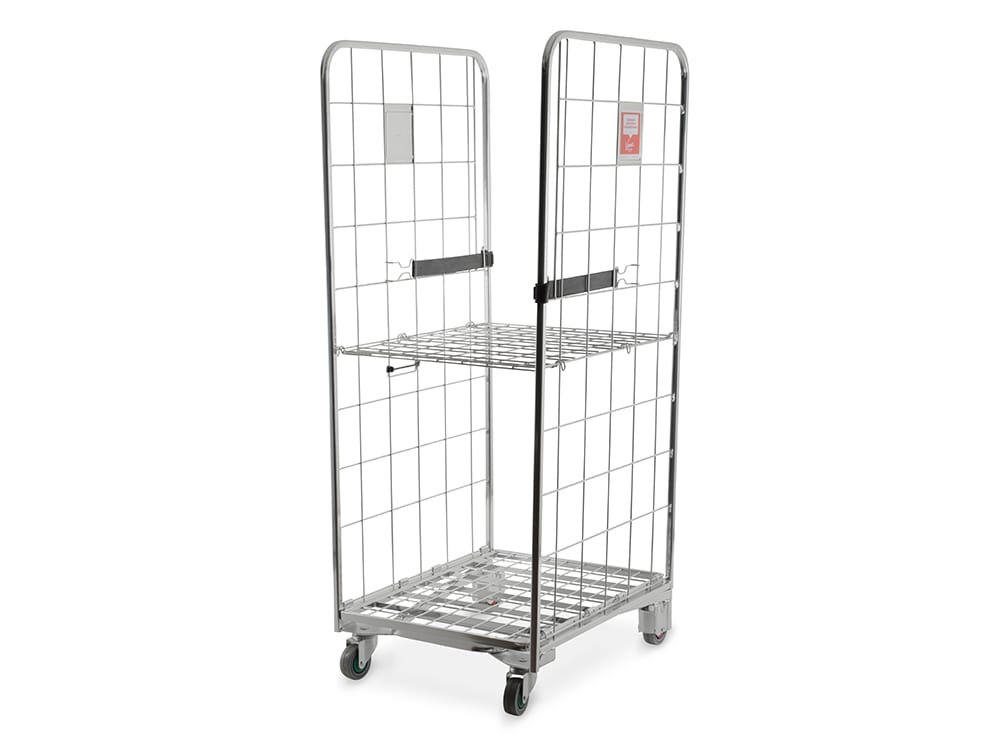

2 sided A-frame Compactainer

The Compactainer® design helps you reduce manual handling, improve ergonomics and space efficiency in combination with higher cubic truck fill.

The one person nesting ensures that your employees or customers, can reduce space requirements in outlets and storage rooms. It further ensures that you can get all empty roll containers back quickly from the delivery points.

By avoiding the “upside down” lifting or demounting efforts the Compactainer® is an ergonomic solution for the order-picking and delivery of goods.

It can also be easily converted into a 4-sided roll cage thanks to add-on doors.

The Compactainer® is a well-proven cart within wholesale and retail industry globally.

Technical specification

External dimensions 1581 x 800 x 704 mm
Internal dimensions 1389 x 800 x 660 mm
Unit tare weight 29 kg
Safe working load per unit 450 kg
Loaded units / 13,6m trailer 57
Nested units / 13,6 m trailer 258
Row 150 mm
Nesting increment 150mm
Castor size 100 mm
Castor type 2 fixed, 2 swivel compound
Finish Zinc electro-plated + dip-lacquered

Accessories & extra

  • Removable shelf
  • Removable backwall
  • Textile straps
  • Different wheel material
  • 125 mm wheels
  • Other internal heights upon request
  • 3- or 4-sided versions upon request
  • Detachable shelf
  • Adjustable K.Hartwall SmartShelf®
  • Branded logo stickers on nameplate

Key benefits

  • Space efiicient
  • One person handling: easily nestable for storage
  • No lifting: Best in class ergonomics
  • Low tare weight to reduce emissions and fuel consumption
  • Designed for easy maintenance and high resistance to damage
  • No loose parts
  • Improved brand recognition
  • Suitable for automation
